1951 Chevy Accessories Installation Manual |
|||
 |
|||
|
|
|||
|
Figure 68 |
|||
|
|
|||
|
986538 TRUNK GUARD
Procedure
for Installation of Trunk Guard on All
Model Passenger Cars. |
1. Place cross bar opening on the two rear
bumper guards and push cross
bar towards front of car, until
cross bar openings are over
bumper guards.
2. Place cross bar clamps on bumper guards
and use two cap screws and
lock washers furnished on each
bumper guard to hold cross bar
clamp in place and tighten securely, (see figure
71), |
||
 |
|||
|
|
|||
|

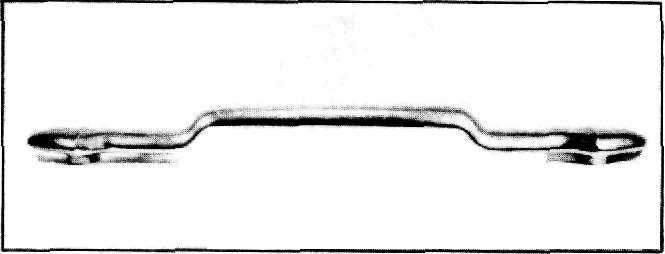

Figure 69 |
Approximate Flat Rate Time .3
of an hour, |
||
|
|
|||
 |
|||
|
|
|||
|

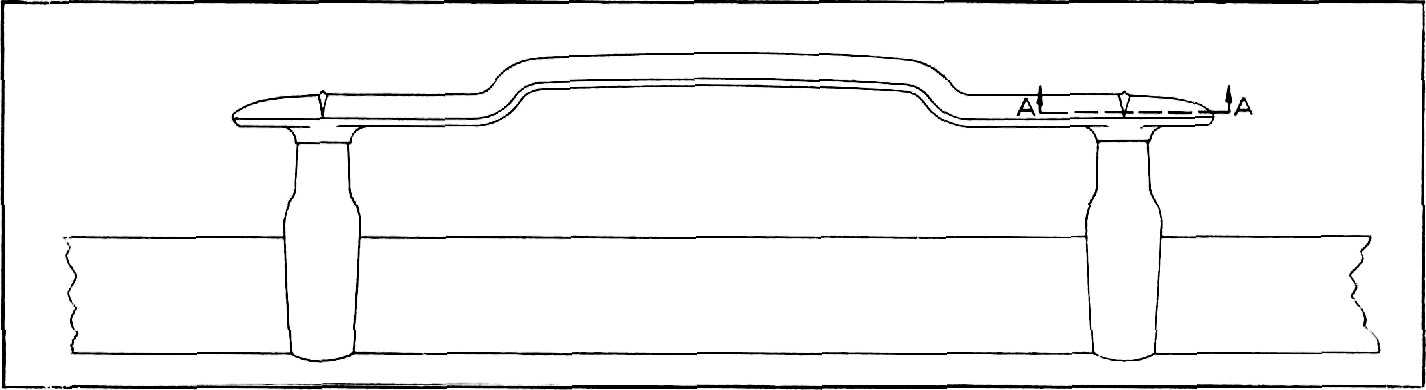

Figure 70 |
|||
|
|
|||
|
26 |
|||
|
|
|||
