1951 Chevy Accessories Installation Manual |
|||
|
1. Locate four holes in metal plate, under head
lining of car, at right corner
above windshield garnish
moulding. Pierce head lining with ice pick.
2. Head lining should be cut to clear the
bracket hub and tension
spring of visor.
3. Mount visor to car with three self-tapping
screws
furnished.
Approximate Flat Rate

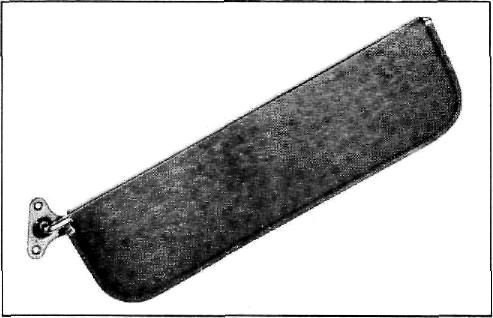

Time .1 of an hour. 986155 RIGHT-HAND SUN
VISOR
Procedure
for Installation of Right-hand Sun
Visor on All Model
Trucks. |
roof lining, place template in
position on right side of
cab.
2. Line up front edge of template as
indicated, cut holes in lining
to match holes in metal.
3. Mount visor to truck with three
self-tapping screws
furnished.
Approximate Flat Rate Time .2 of
an hour. |
||
|

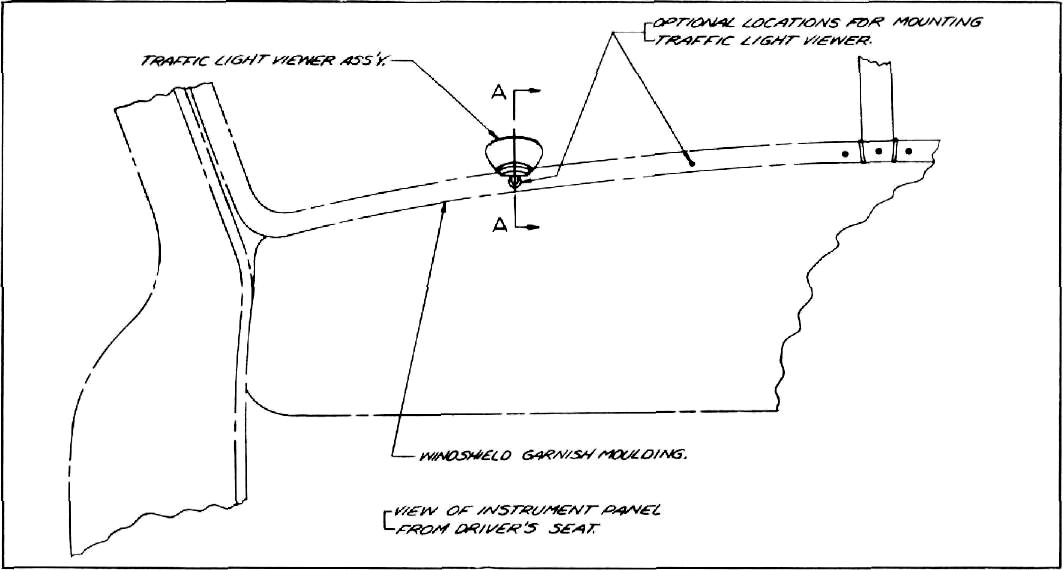

986550 TRAFFIC VIEWER |
|||
 |
|||
 |
|||
|
Figure 211
1. To locate holes provided in metal
under |
|||
|
Figure 213 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 212 |
|||
|
|
|||
|
88 |
|||
|
|
|||
