1951 Chevy Accessories Installation Manual |
|||
|
986529 PARKING BRAKE ALARM
Procedure
for Installing Parking Brake Alarm on
all Model Passenger Cars. |
1. Cut windshield wiper suction lower hose 2
inches from dash mat and insert
TEE connector. (See figure
2.)
2. Assemble parking brake alarm hose to
parking brake alarm
assembly and then to TEE connector.
3. Loosely locate parking brake alarm on
parking brake lever
housing with spring over parking brake lever guide pin in shaft.
Start engine with parking
brake fully released. Pull
parking brake alarm upward on shaft until alarm stops whistling, then secure
parking brake alarm at this position. BE SURE THAT PARKING BRAKE LEVER GUIDE PIN CAN MOVE FREELY WITH NO
INTERFERENCE FROM PARKING
BRAKE |
||
 |
|||
|

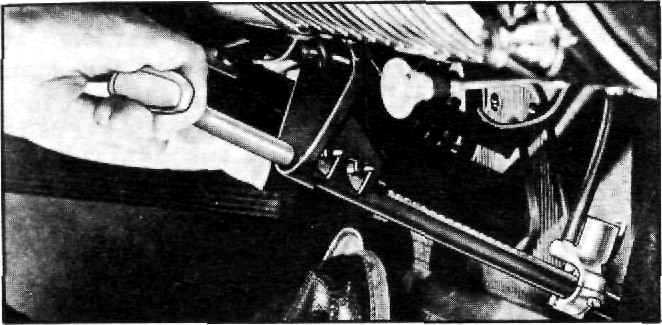

Figure 1 |
|||
|
|
|||
 |
|||
|
|
|||
|

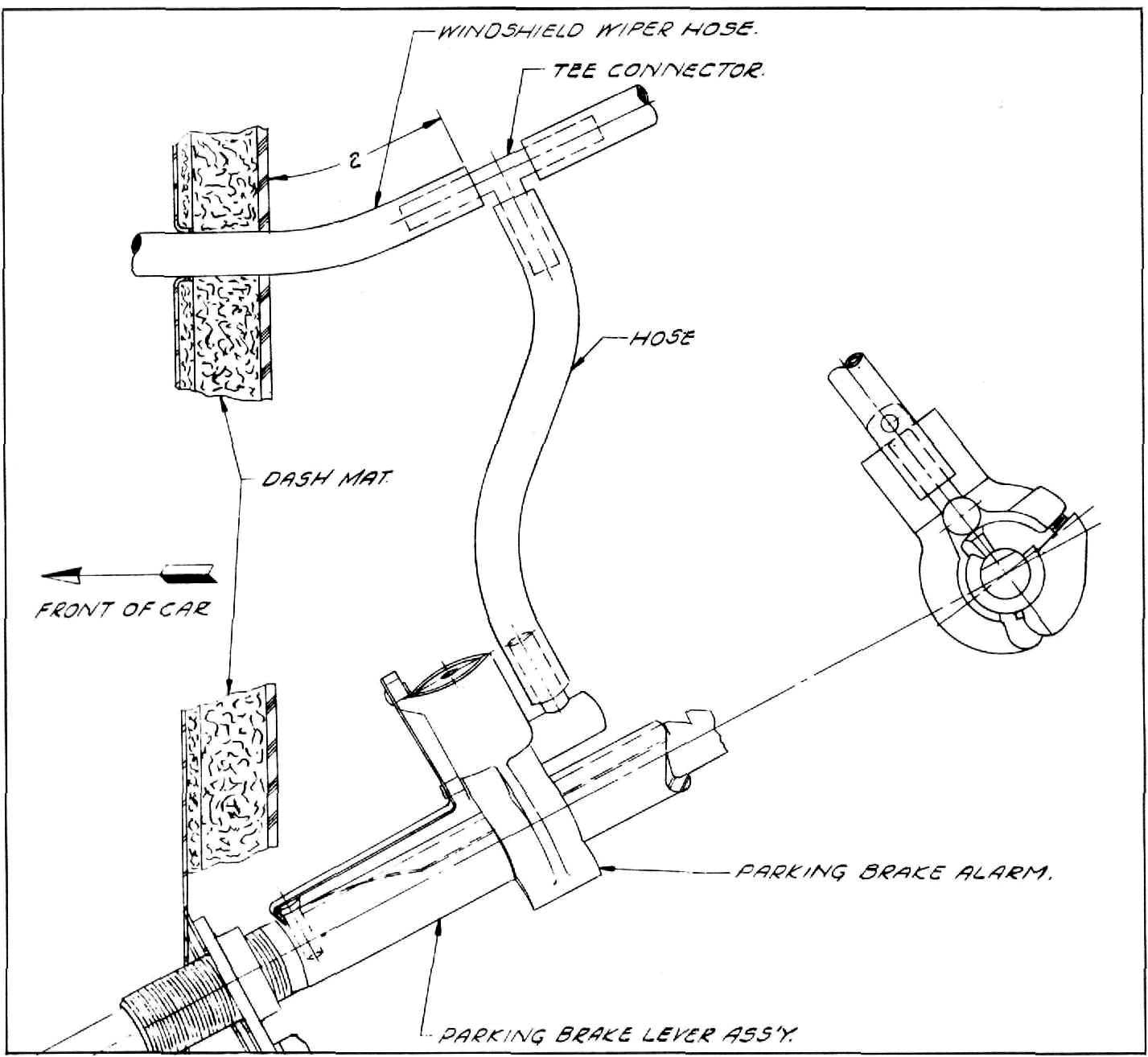

Figure 2 |
|||
|
|
|||
|
