1951 Chevy Accessories Installation Manual |
|||
|
ALARM.
4. Cut mat if necessary for clearance
of spring.
Approximate Flat Rate
Time .2 of an hour. 986442 WIRING
JUNCTION BLOCK
Procedure
for Installing Wiring Junction Block on All Model Passenger
Cars. |
1. Remove inspection hole cover on
dash.
2. Install Junction
Block to dash inspection hole flange
(Using the existing holes in flange) with screws, nuts and lockwashers
furnished. (See figure
3.)
3. Route Junction Block wiring harness as
shown in figure 5, attaching
to the main wiring harness
with the wire clamps furnished, and connect as
follows: |
||
|
|
|||
 |
|||
|
|
|||
|

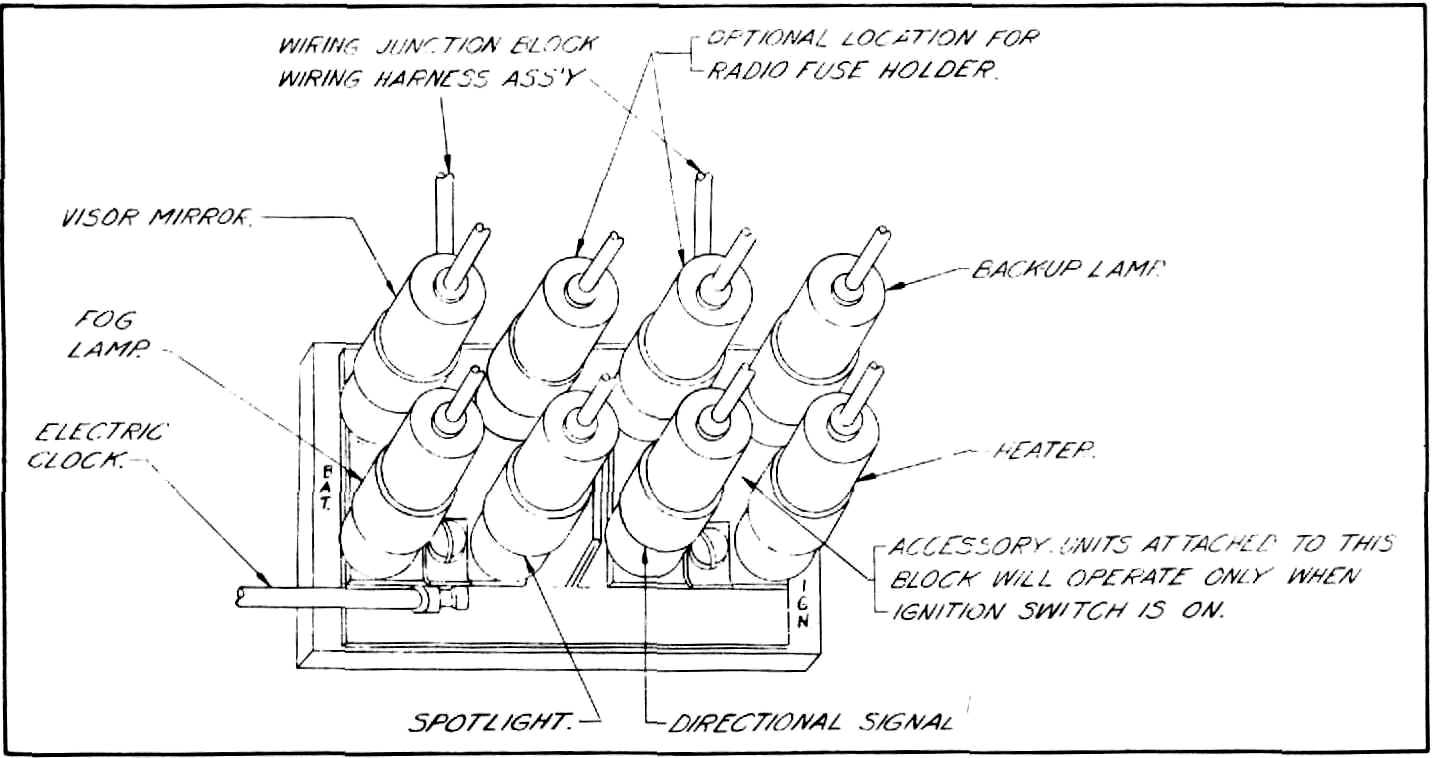

Figure 3 |
|||
|
|
|||
 |
|||
|
|
|||
|

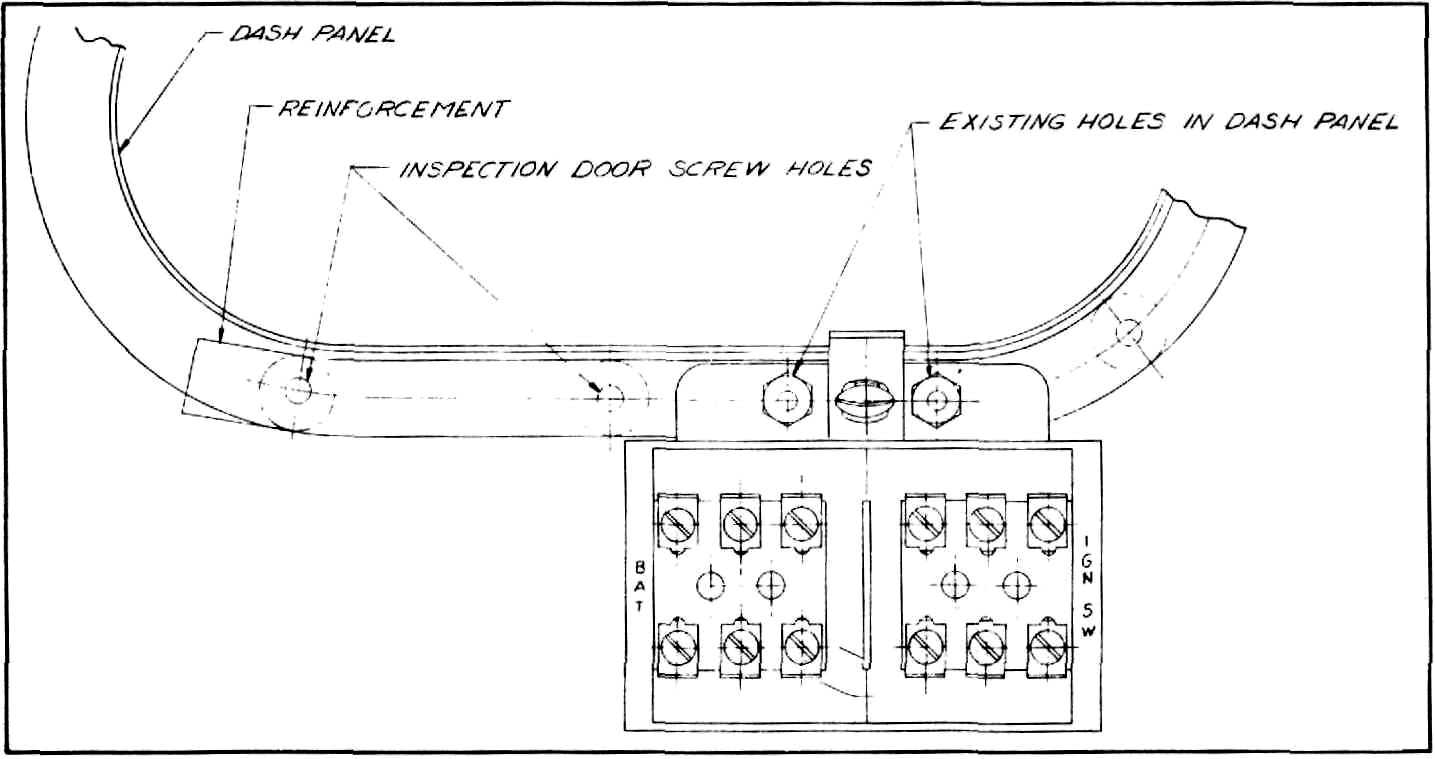

Figure 4 |
|||
|
|
|||
