1951 Chevy Accessories Installation Manual |
||||
 |
||||
|
|
||||
|
Figure 39 |
||||
|
|
||||
|
7. |
Replace
seat back panel and metal screws |
1. Remove seat adjuster knob and side panels
from seat
assembly.
2. Remove four cap screws from each side of
seat assembly which holds seat
to floor pan of body and remove
seat assembly from car.

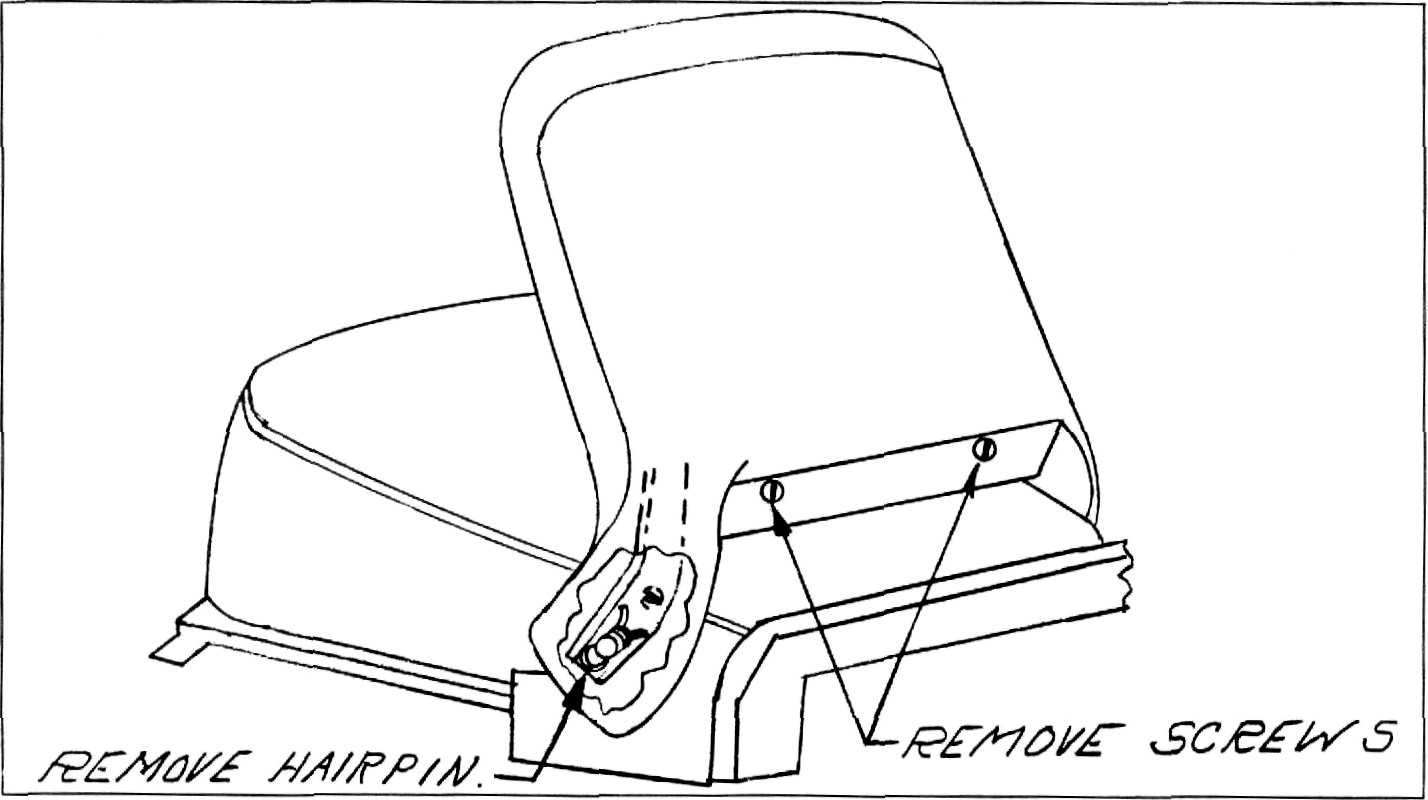

3. Remove two sheet metal screws located at
bottom rear edge of back rest and hairpin clip from back rest shaft on outside end
of |
||
|
and
replace seat assembly in car and tighten securely.
8. Replace
side panels and seat adjuster knob.
Approximate Flat Rate
Time 1.5 hours.
ALL TWO-DOOR FRONT
SEATS
Two-Door
Sedans, Bel Airs and Convertibles
(Fiber -
Plastic - Rayon) |
||||
|
|
||||
 |
||||
|
|
||||
|

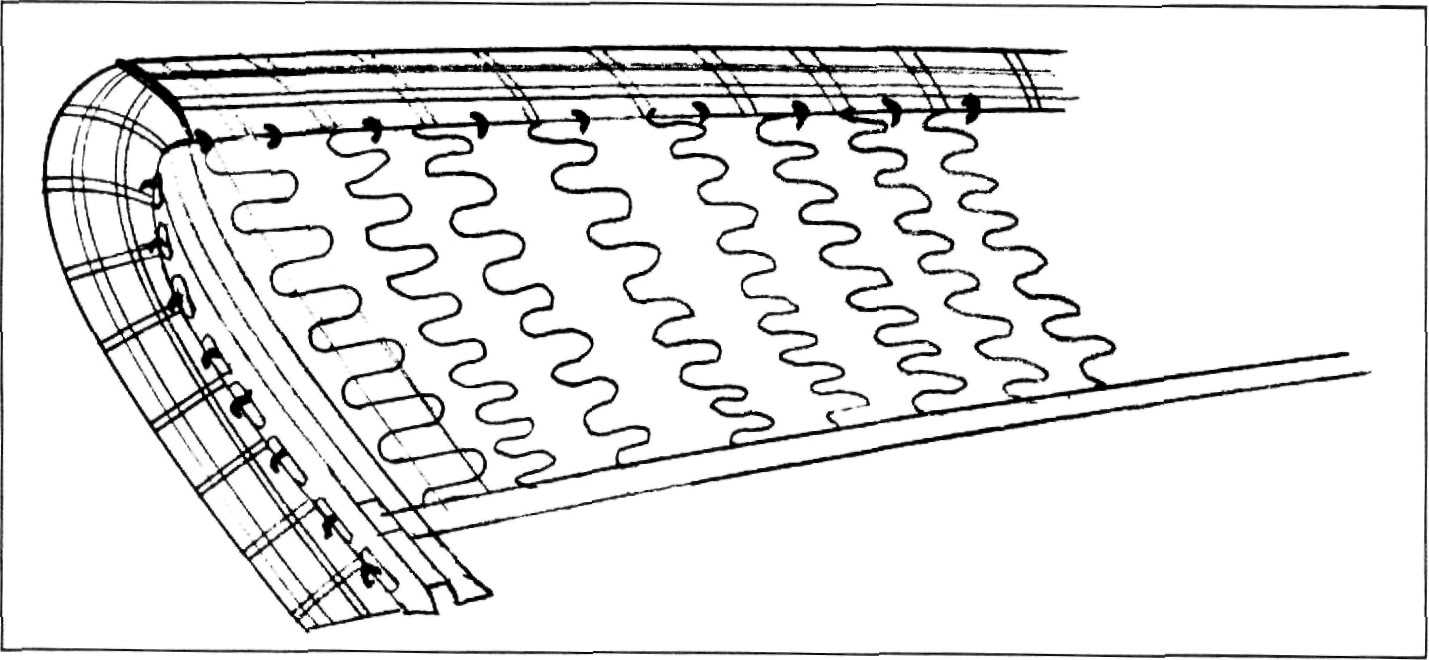

Figure 40 |
||||
|
|
||||
|
15 |
||||
|
|
||||
