1951 Chevy Accessories Installation Manual |
|||
 |
|||
|
|
|||
|

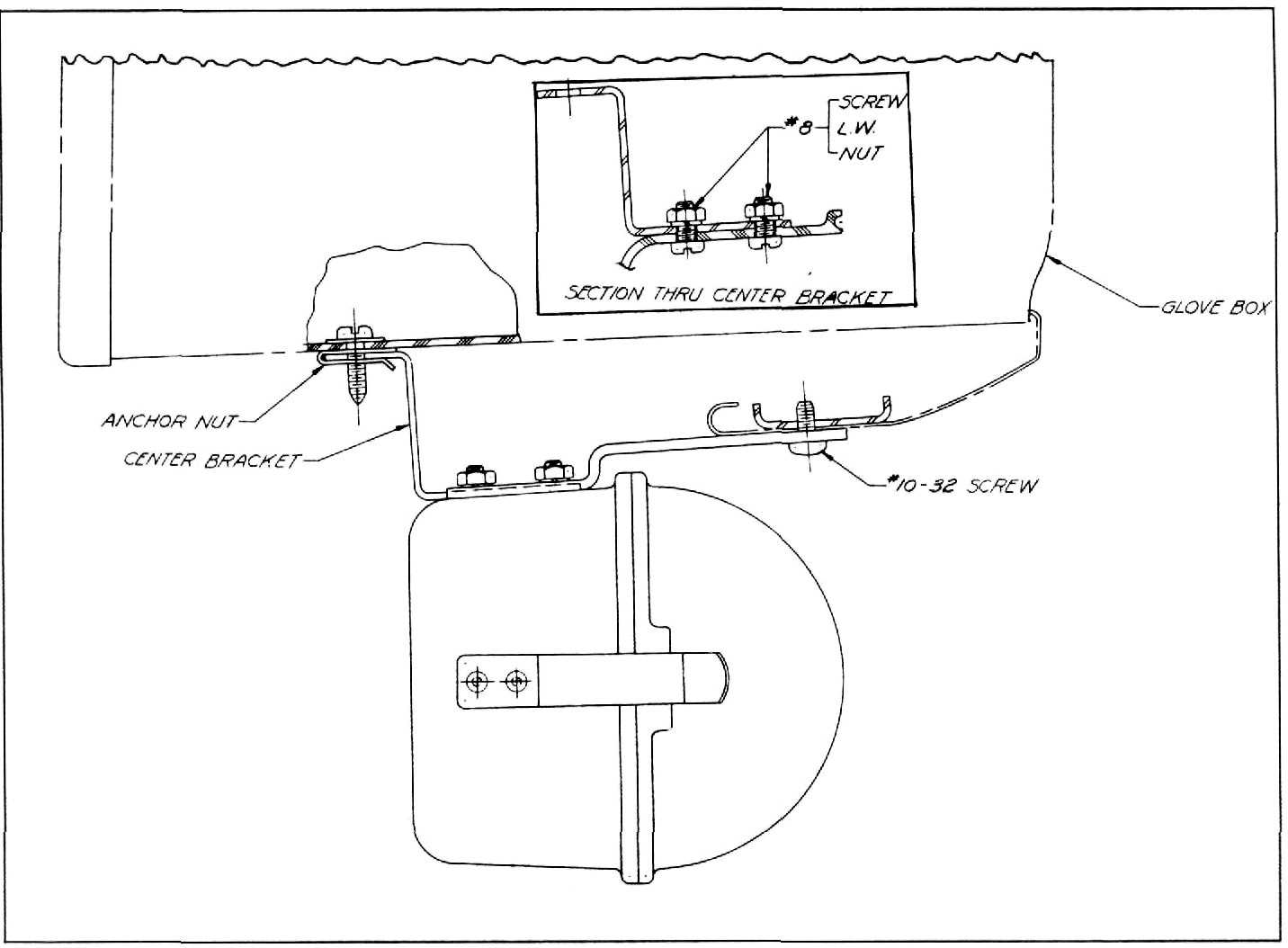

Figure 49 |
|||
|
|
|||
|
Approximate Flat Rate Time .2
of an hour. |
2. Remove fitting on carburetor at "C" in
figure
51.
3. Install 60 degree elbow union at "C" figure
51. (Short end in
carburetor.)
4. Assemble connector and Durex filter as
shown in figure
51.
5. Rebend gasoline pipe, install sleeve and
insert end of pipe to the full depth of connector. Tighten sleeve as necessary to insure
an absolute
seal.
6. Reinstall clip on gasoline pipes at "D" in
figure 51.
7. Start engine and check installation for
leaks. NOTE: If optional
vacuum booster pump equipment
is installed on engine, rebend vacuum pipe line and strap to gasoline pipe
as shown in figure
51. |
||
|
986399 GASOLINE FILTER |
|||
|
Procedure
for Installation of Gasoline Filter on All Model Passenger Cars and
Trucks. |
|||
 |
|||
|

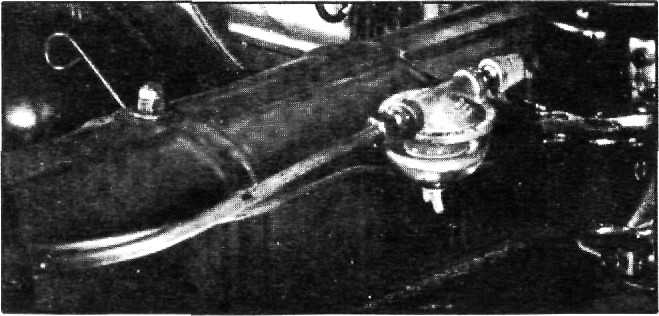

Figure 50 |
|||
|
|
|||
|
1. Remove
metal clip around gasoline pipe and cut gasoline pipe as shown in figure
51. |
Approximate Flat Rate Time .3 of
an hour. |
||
|
|
|||
|
19 |
|||
|
|
|||
