1951 Chevy Accessories Installation Manual |
|||
|
FRONT |
REAR |
||
|
|
|||
 |
 |
||
|
Figure 66 |
|||
|
|
|||
|
Figure
66-A |
|||
|
|
|||
|

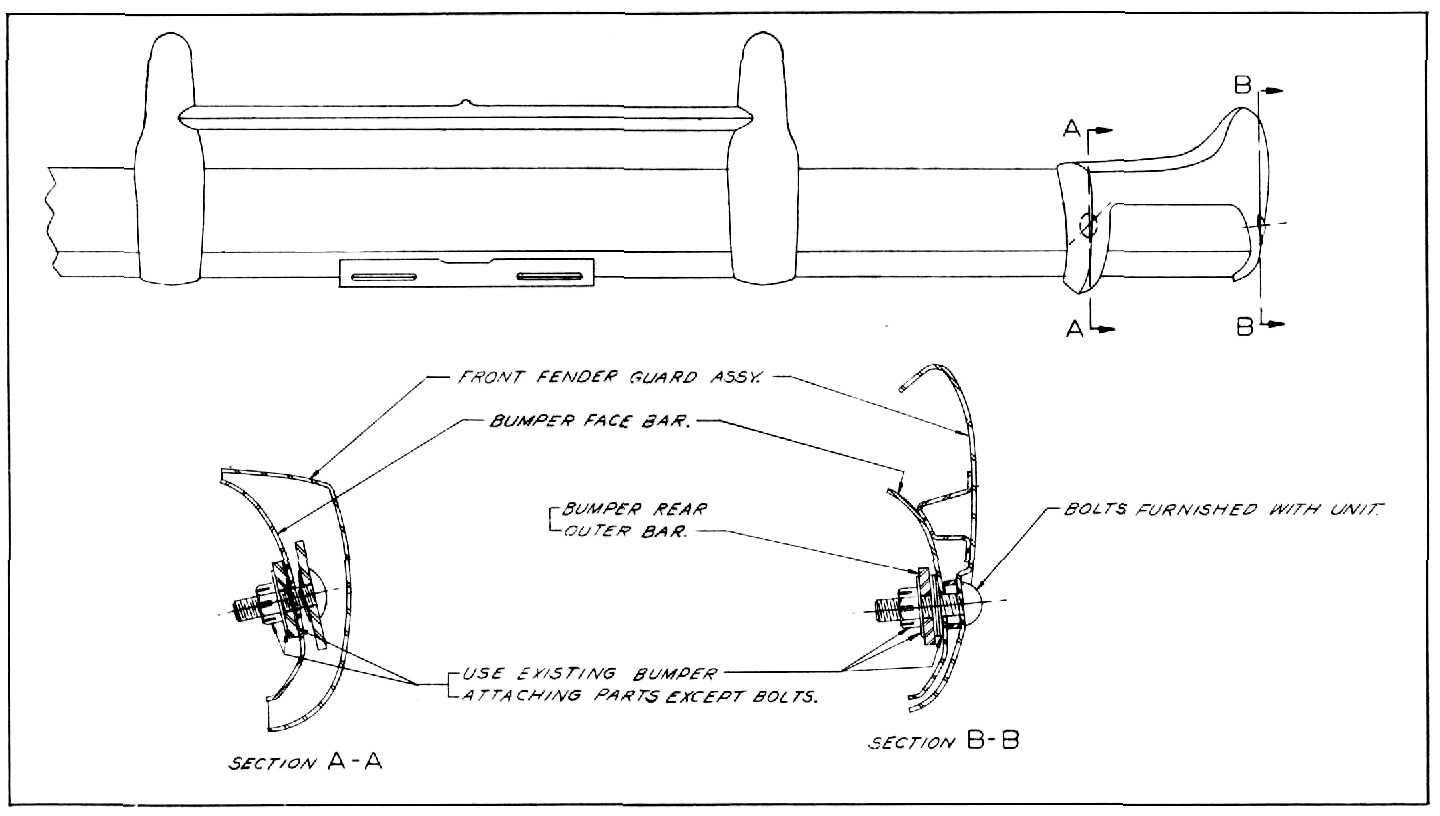

1. Remove two end bolts and attaching parts
from bumper face
bar.

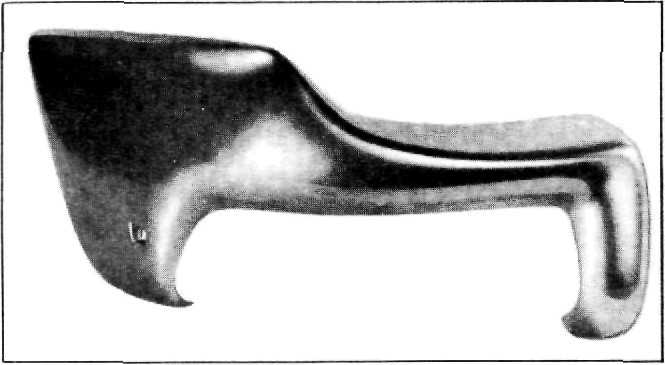

2. Place fender guard in position by inserting
bolt at section A-A in bumper
face bar and aligning hole at
Section B-B. Insert bolt furnished with unit and replace other
attaching parts as shown
in figure 67.
3. Left-hand fender guard shown. Attach
right-hand fender guard in same
manner.
4. If top rear portion of fender guard is
closer than 3/4 inch to the
fender, add washers between
bumper rear outer bar and bumper face bar to maintain that
clearance. |

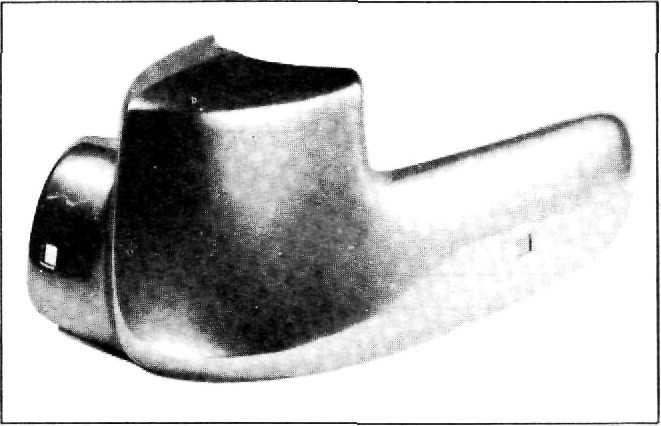

1. Remove two end bolts and attaching parts
from rear bumper face bar
end.
2. Place rear fender guard assembly in
position, aligning holes,
insert bolts and attaching
parts in the same order that they were removed. (See figure
68.)
3. Left-hand fender guard shown, attach
right-hand rear fender guard
in the same manner. |
||
|
Approximate Flat Rate Time .5
of an hour. |
|||
|
|
|||
 |
|||
|
|
|||
|
