1951 Chevy Accessories Installation Manual |
|||
 |
|||
|
|
|||
|

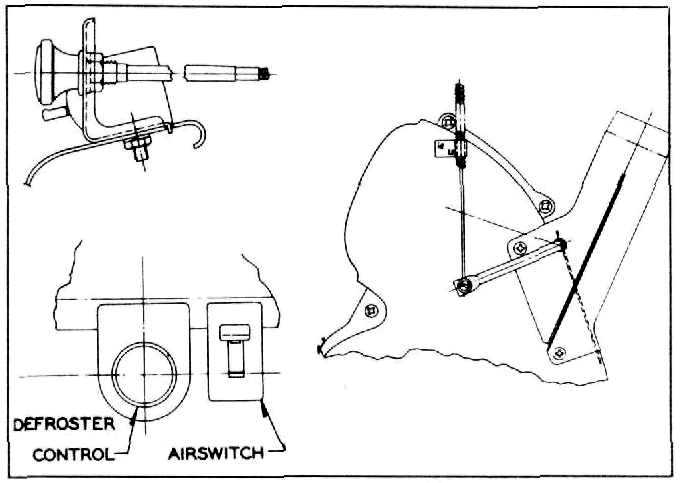

Figure 100 |
|||
|
|
|||
 |
 |
||
|

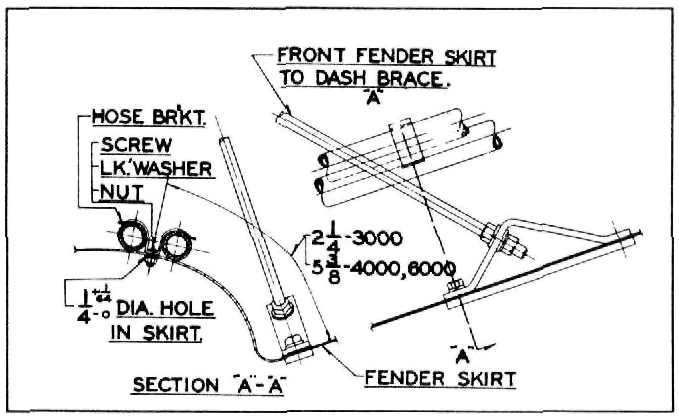

Figure 102
Special instructions for Cab Over
Engine Models
1. Follow same instructions as outlined for
regular truck, except the hose
lengths and hose clamp. Drill
1/4 inch hole through dash as
shown in section FF, figure 103.
2. Attach hose as shown in figure
103. |
|||
|

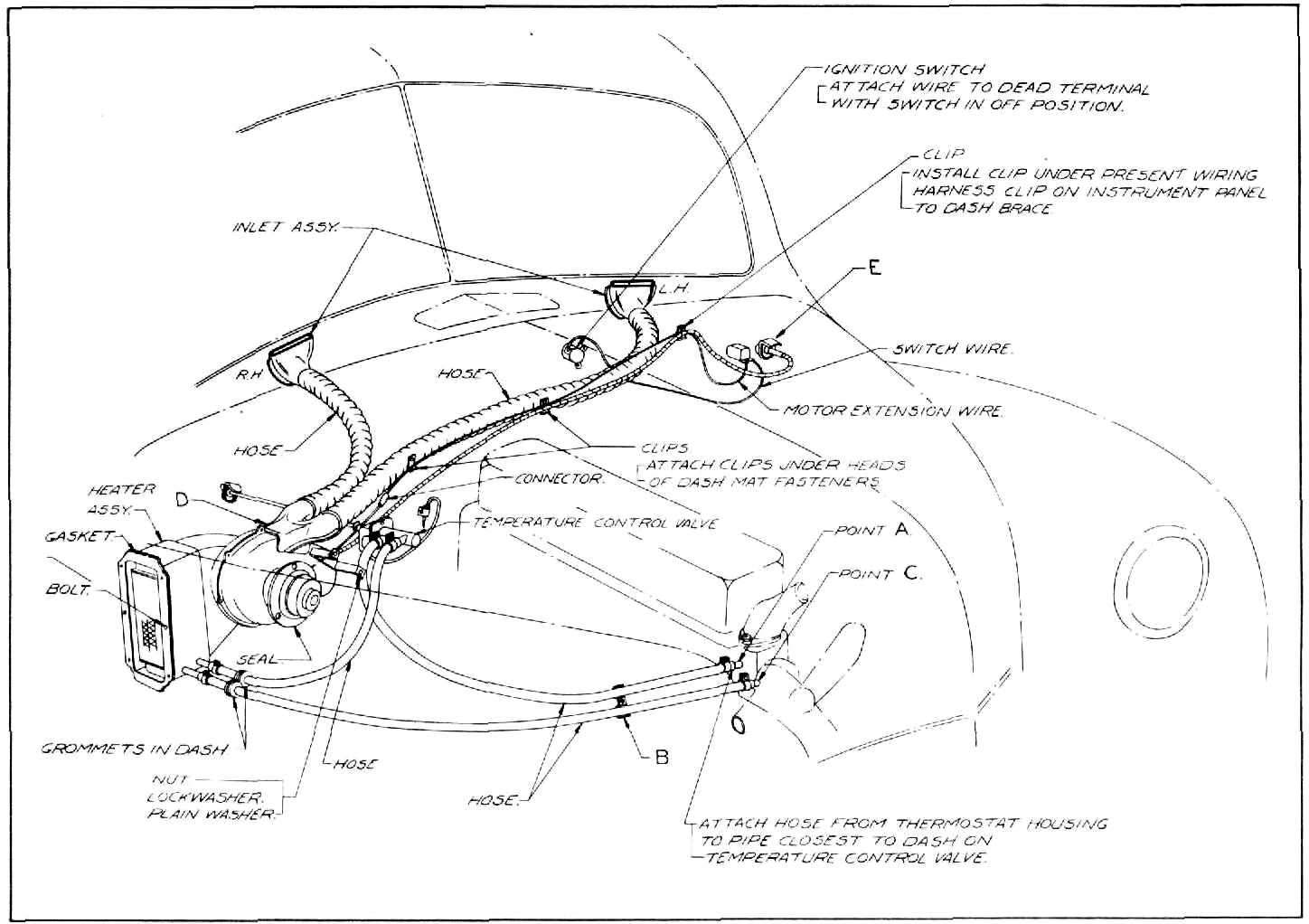

Figure 101
13. Replace engine thermostat
with high temperature thermostat
furnished. Permanent antifreeze must be
used. |
|||
|
|
|||
|
Approximate Flat Rate Time 1.7
Hours. |
Approximate Flat Rate Time 1.7
hours. |
||
|
|
|||
|
38 |
|||
|
|
|||
