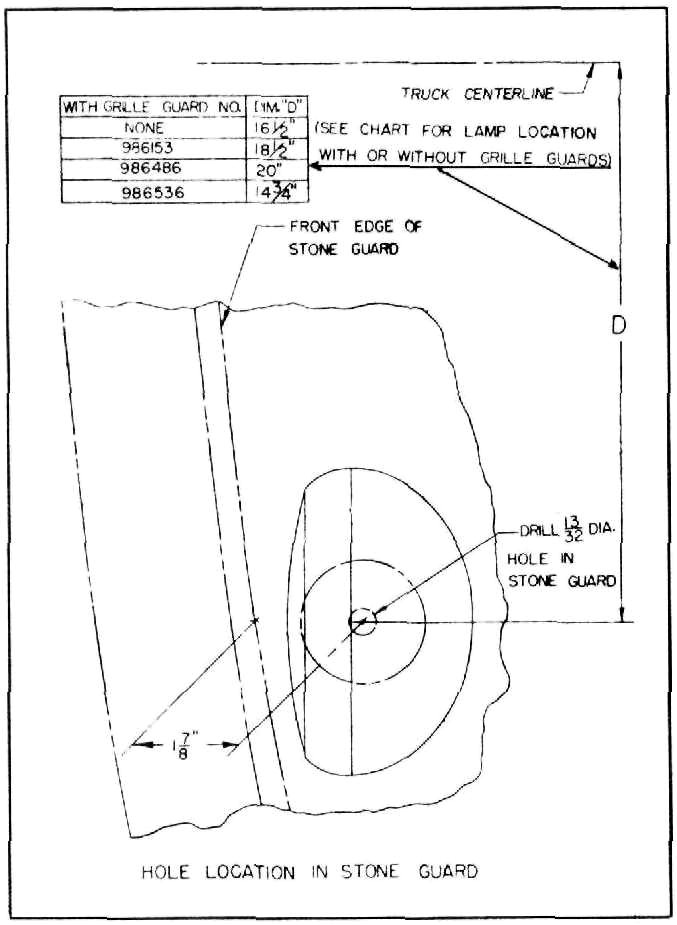

Figure 118
ator tie
bar. Place left-hand lamp wire through
fender skirt and splice right-hand wire into left-hand wire, solder and tape
as shown in figure 117.
Place
left-hand lamp wire along truck wiring harness and run through dash to drivers
compartment. Install fog lamp
switch to instrument panel as shown in figure 119. Place rubber sleeve and terminal on wire from
fog lamps and connect to
terminal marked "FOG" on switch
as shown in figure 119. Place
#16 natural colored jumper wire from |
|||
|

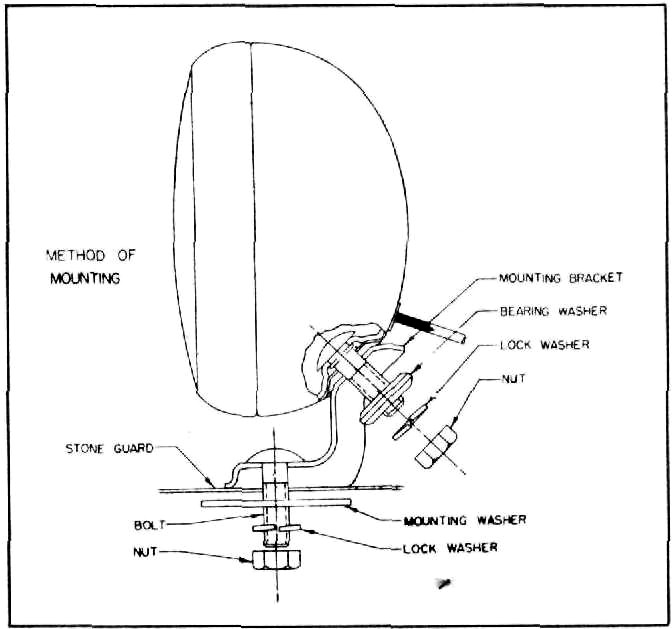

Figure 116
3. Place
right-hand lamp wire through fender skirt with parking lamp wire and through
clips holding truck wiring
harness to radi- |
|||
|
|
|||
 |
|||
|
|
|||
|

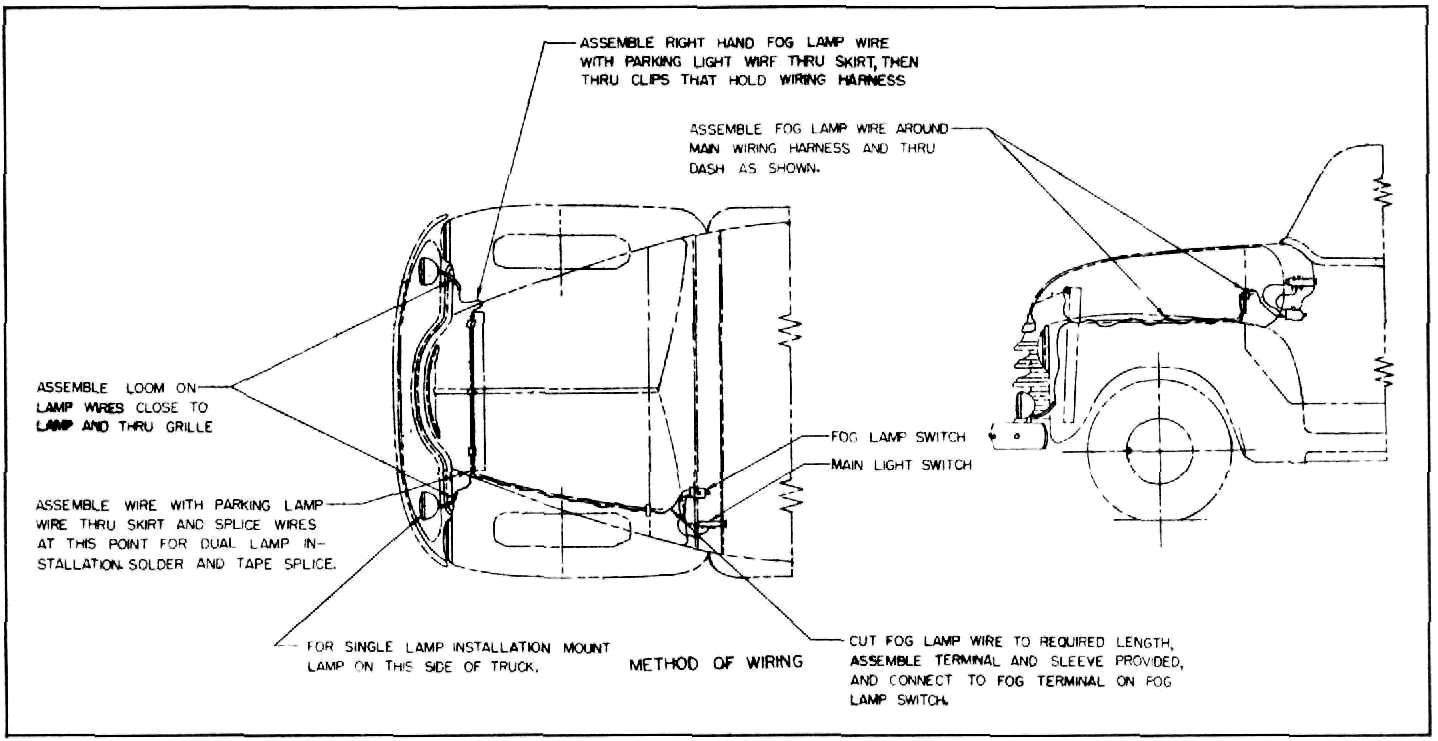

Figure
117 |
|||
|
|
|||
|
