1951 Chevy Accessories Installation Manual |
|||
 |
4. Connect lead from lamp to battery terminal
on voltage
regulator.
5. After installation, the proper position of
the lamp should be checked,
lower the hood within eight inches of closed position, at which point light should go
off.
6. If it does not, bend the bracket downward
slightly. |
||
|
TRUCK
Installation
procedure is the same as for the passenger car except location of wire. See
figure
130.
Approximate Flat Rate Time .1 of
an hour. |
|||
|

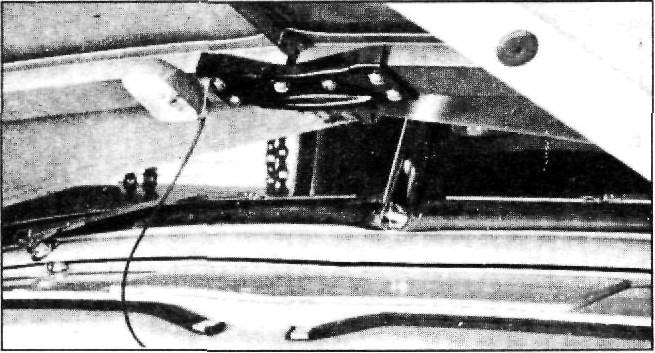

Figure 129
1. Attach lamp at right-hand of hood top panel
rear reinforcement, using
existing attaching parts as
shown in figure 130.
2. Allow sufficient slack in wire to raise hood
fully.
3. Install clips under nut and lock washer on
ends of brace rods, pinch
tight on wire. |
|||
|
986299 RIGHT-HAND TAIL LAMP
Procedure
for Installation of
Right-Hand Tail Lamp on Model
3000-4000-5000-6000 Trucks. |
|||
|
|
|||
 |
|||
|
|
|||
|

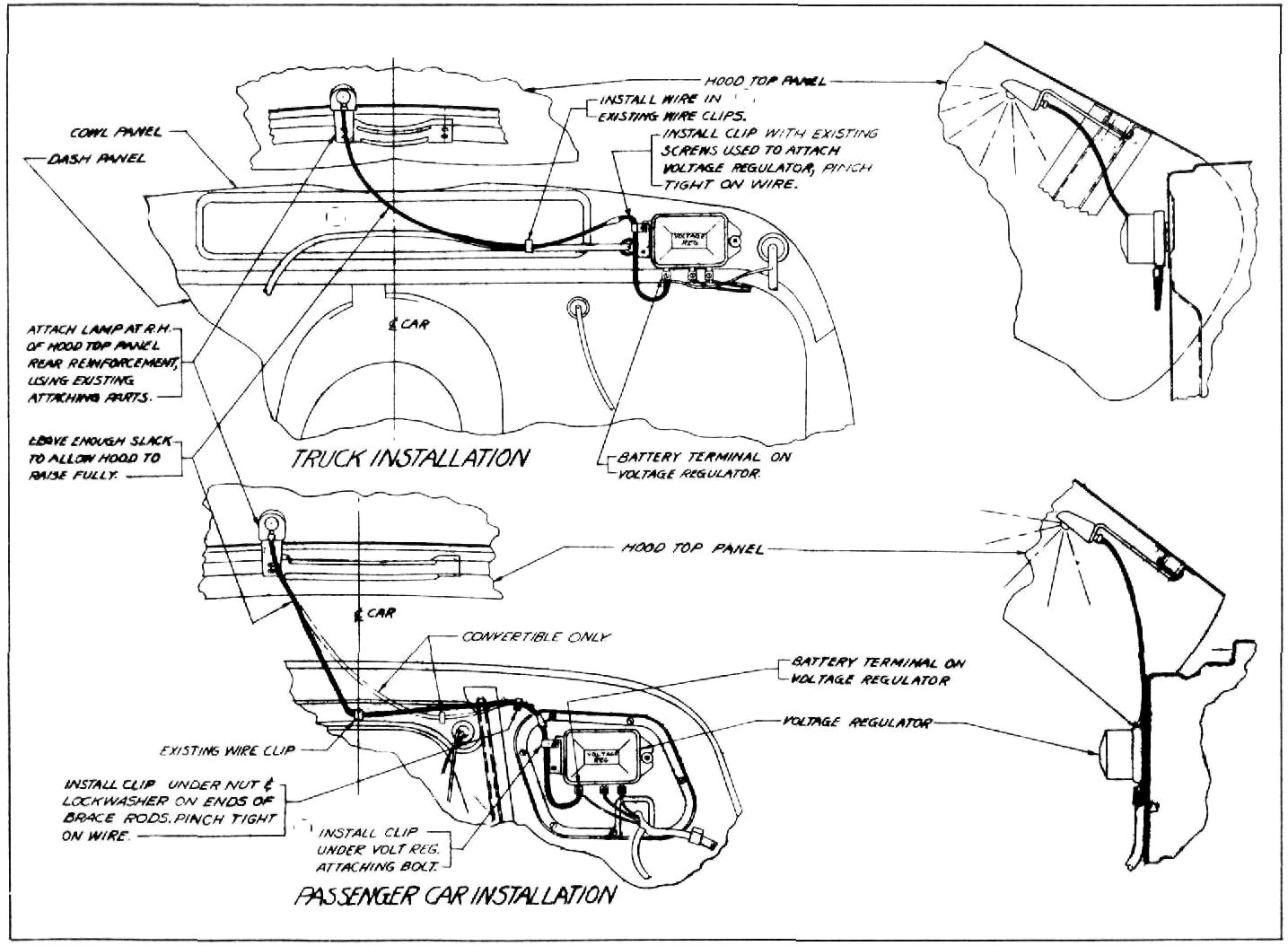

Figure 130 55 |
|||
|
|
|||
