1951 Chevy Accessories Installation Manual |
|||
|

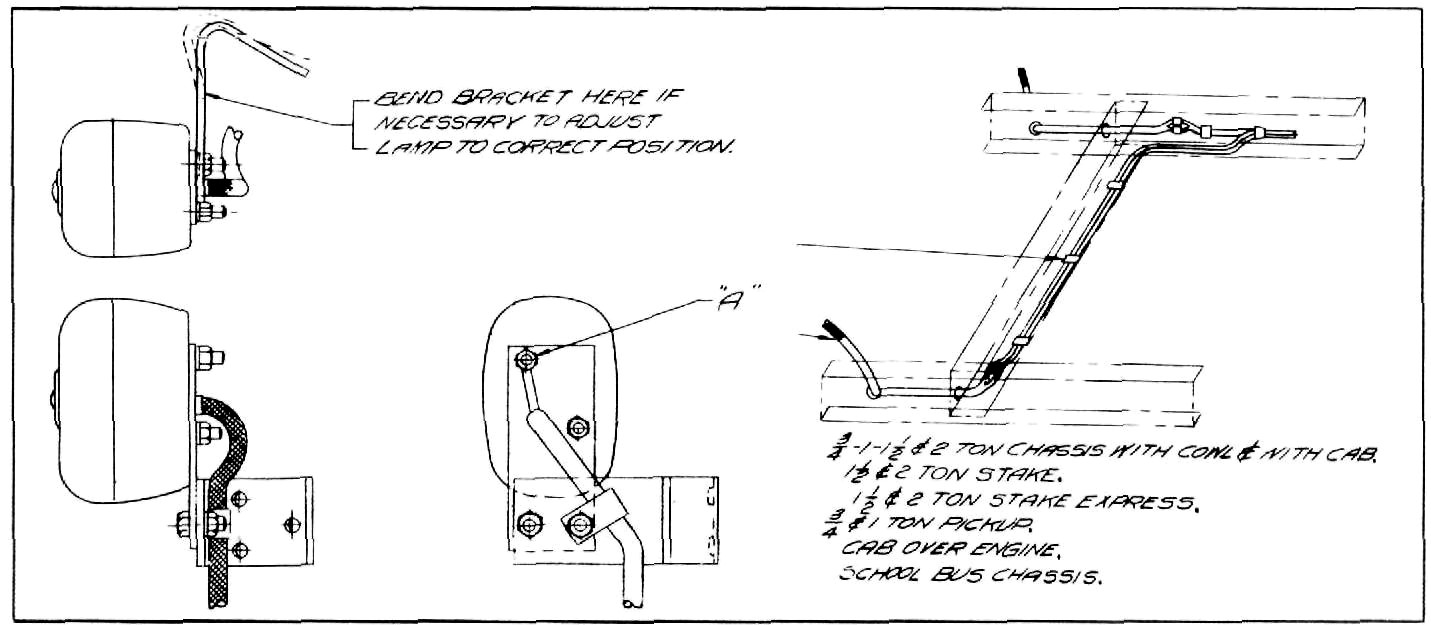

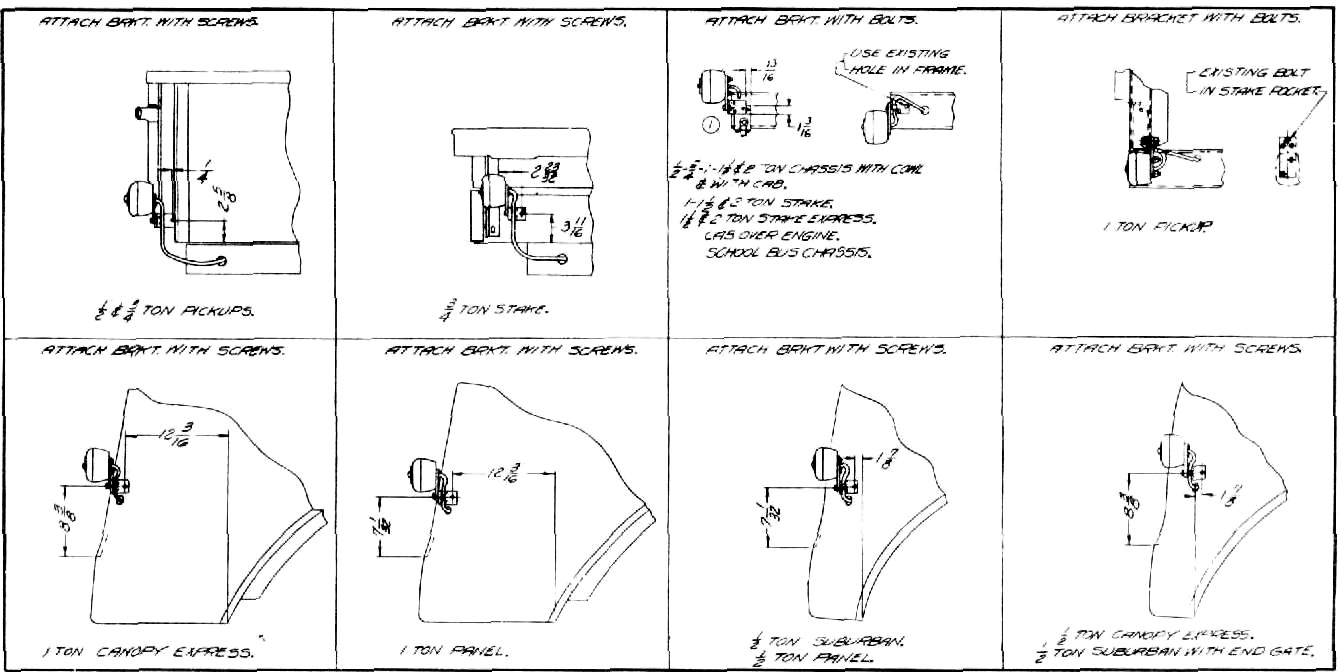

1. Mount lamp with tail and stop lamp bulbs in
same position as left-hand tail
lamp.
2. Natural color wire to stop lamp
bulb.
3. Natural color with black tracer to tail
lamp bulb.
4. On 3/4 ton stake, a ground wire is
required. Use a length of
excess wire cut from wires on
tail lamp. Strip end and fasten under lamp attaching nut at "A." Run wire through
loom and ground at any
convenient point.
Approximate Flat Rate Time .3
of an hour. |

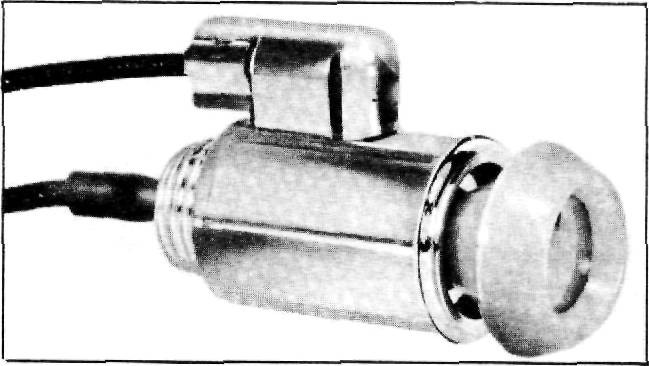

986488 CIGARETTE LIGHTER AND
CIGARETTE LAMP |
||
 |
|||
|
|
|||
|
Figure 133 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 131 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 132 56 |
|||
|
|
|||
