1951 Chevy Accessories Installation Manual |
|||
|
Procedure for Installing
Cigarette Lighter
and
Cigarette Lamp on All Model Passenger
Cars.
1. Remove and discard dummy button or
present
lighter.
2. Remove lamp
socket from clamping shell and
clamping shell from lighter.
3. Insert lighter in instrument panel hole and
reassemble clamping shell and
lamp socket.
4. Rotate clamp shell to position such that
light unit causes no
interference.
5. Route lamp wire through clips on back of
instrument panel. (See figure 134.) Attach lamp wire terminal to tail lamp terminal on
light switch. (See figure
134.) |
6. Remove grommet
from dash and rework grommet by removing thin wall at end of hole and cutting grommet from side to
hole.
7. Install wire from lighter through hole in
dash from which grommet was
removed and connect wire terminal to battery terminal on starting motor solenoid being sure
cigarette lighter wire is
on top.
8. Insert wire in grommet and reinstall
grommet in hole in dash. (See figure 134.)
9. To operate, push in knob which will return
to original position when
lighter is ready for
use. |
||
|
Approximate Flat Rate Time .2
of an hour. |
|||
|
|
|||
 |
|||
|
|
|||
|

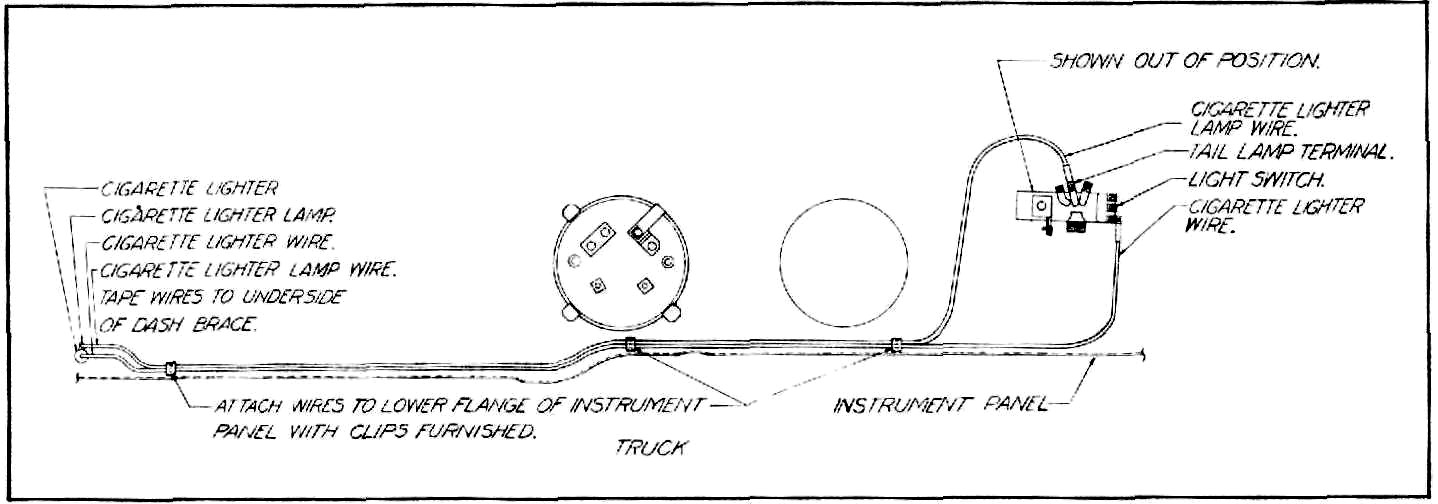

Figure 134 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 135 57 |
|||
|
|
|||
