the
cover. Cover is designed to spring into correct position when
installed.
4. Remove cover and drill 1/4 inch holes at
points scribed in body opening
flange.
5. Install guides being sure to pull down
screws so that screw heads
will pull into body metal. (See figure 151.)
6. Place cover in opening and move lock lever
"D" to locked
position.
Repeat
operation for opposite side of car. Approximate Flat Rate Time 1
hour.

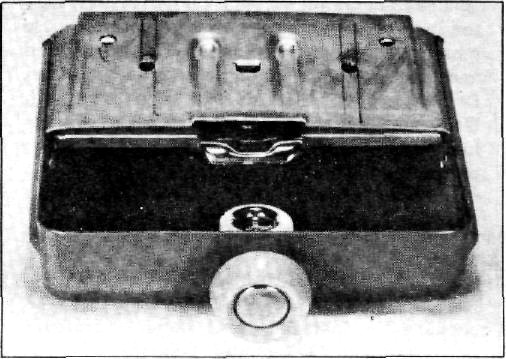

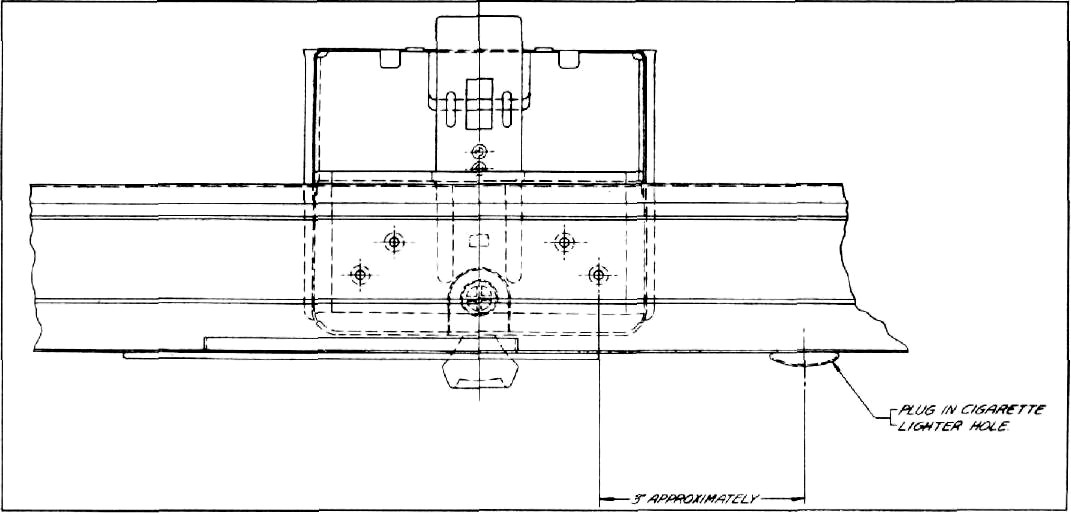

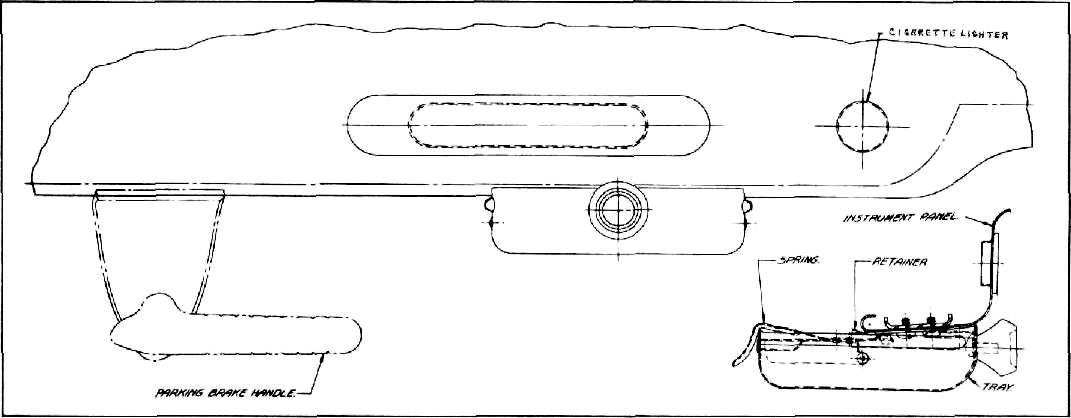

986487 ASH TRAY
Procedure
for Installing Ash Tray on All Model
Passenger Cars. |
 |
||
|
Figure 154 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 152 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 153 64 |
|||
|
|
|||
