1951 Chevy Accessories Installation Manual |
|||
|
CAUTION: After drilling is
completed, unscrew bracket from
post, discard paper Template,
and clean away shavings, burrs, etc.
Mounting Light

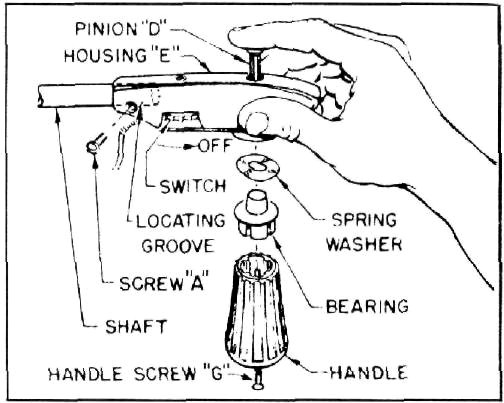

5. First, Handle Unit "E" must be
detached from Lamp. Follow figure 167 closely:
Loosen |
locating
screw "A," remove bolt "G" at bottom
of Handle "C." and remove Handle, being careful not to lose the Spring
Washer. Remove Pinion "D" by
pushing up from bottom
side (where Handle was removed). Completely remove screw "A." Handle Unit "D"
may now be detached by pulling it off shaft. DO NOT DISMANTLE THE LAMP ANY FURTHER. |
||
|
|
|||
 |
 |
||
|
|
|||
|

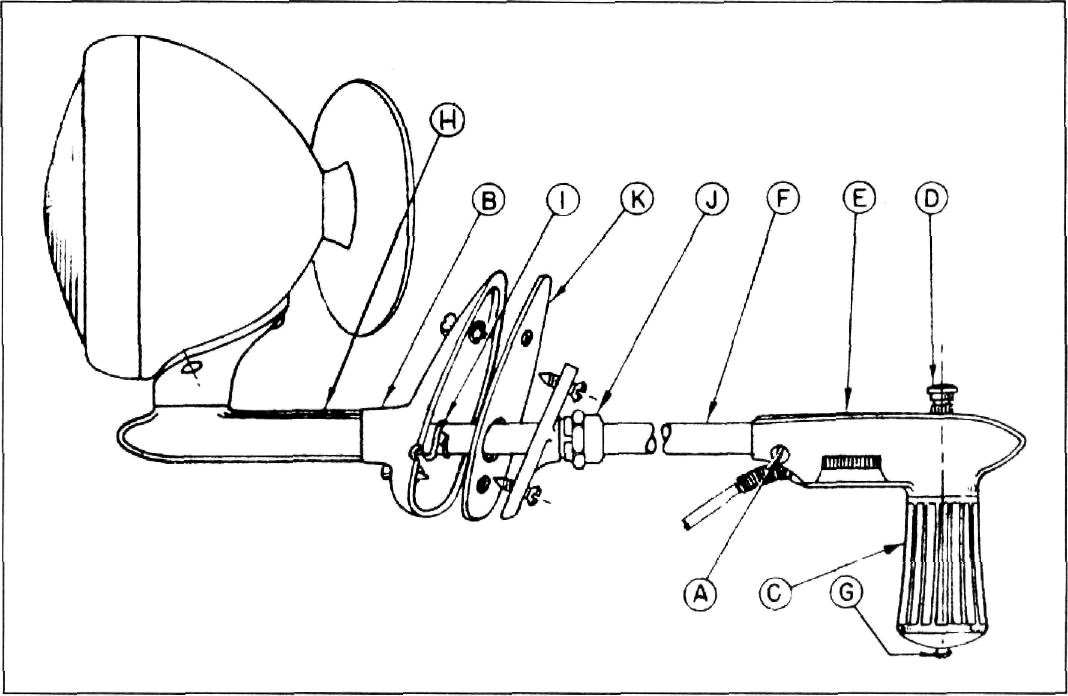

Figure 167 |

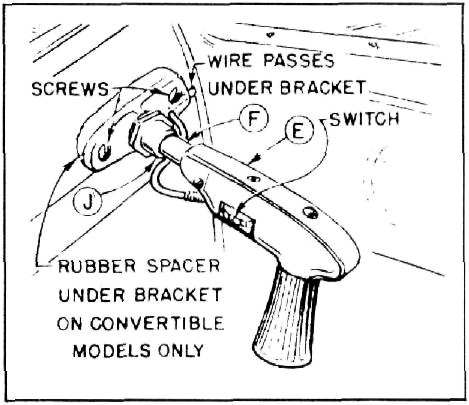

Figure 169 |
||
|
|
|||
 |
|||
|
|
|||
|
Figure 168 |
|||
|
|
|||
|
68 |
|||
|
|
|||
