1951 Chevy Accessories Installation Manual |
|||
|

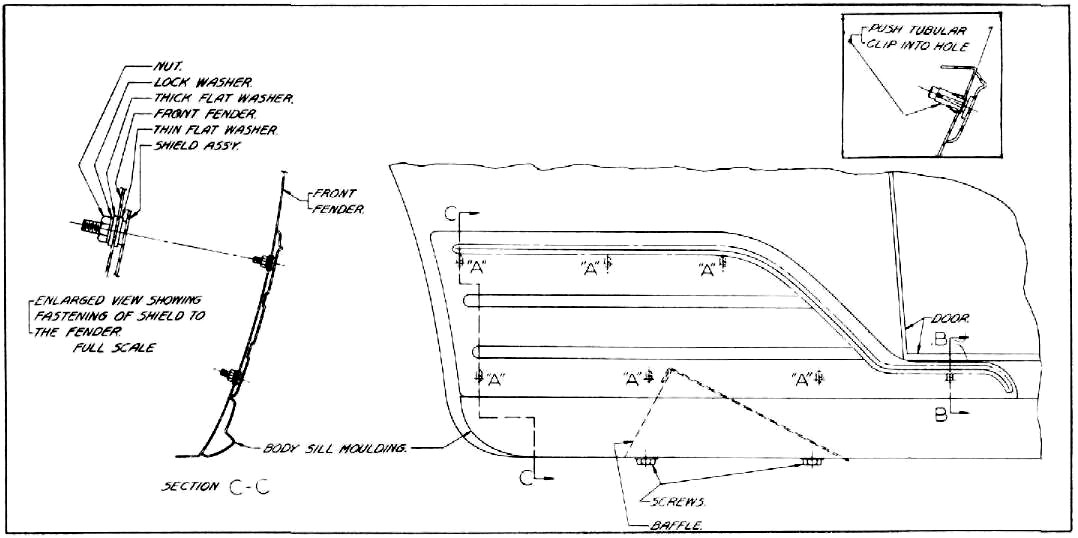

1. Remove baffle by removing four
screws.
2. Locate holes in fender from template
furnished and drill
holes.
3. Install special tubular clip (see figure
179).
4. Place thin washers on studs marked "A" on
assembly.
5. Place shield in position on fender and
install flat washers, lock
washers and nuts.
6. Replace baffle and
screws.
Approximate Flat Rate Time .4
of an hour. |
 |
||
|
Figure 181 |
|||
|
|
|||
 |
|||
|
|
|||
|
Figure 179 |
|||
|
|
|||
|

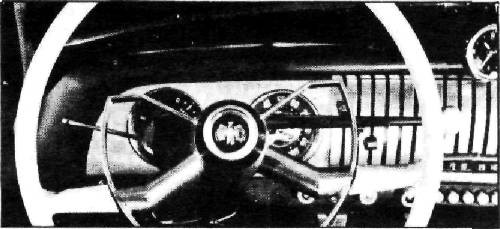

986514 SELF-CANCELING TURN SIGNAL
Procedure
for Installation of Turn Signal on All
Model Passenger Cars. |

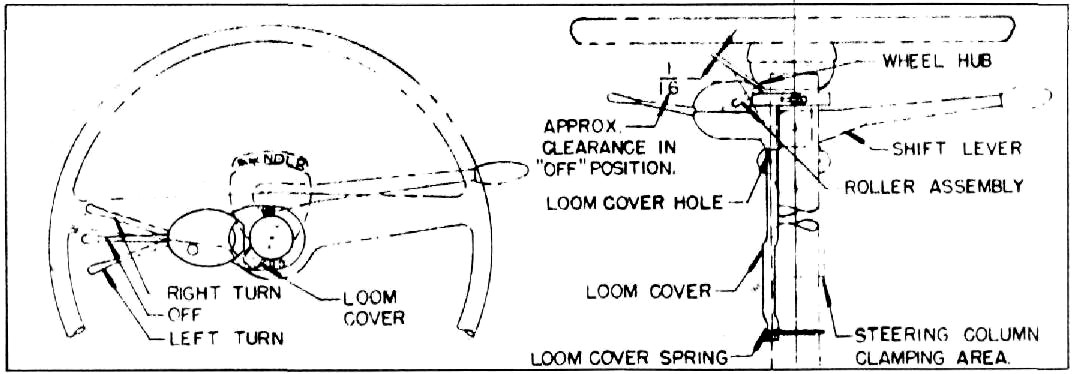

1. Hook
loom cover into wire hole on bottom of switch and mount between gear shift
control and steering wheel
hub on left side of steering
post. Mount turn signal to left of |
||
|
|
|||
 |
|||
|
|
|||
|
Figure 180 |
|||
|
|
|||
|
74 |
|||
|
|
|||
