1951 Chevy Accessories Installation Manual |
|||
 |
|||
|
|
|||
|

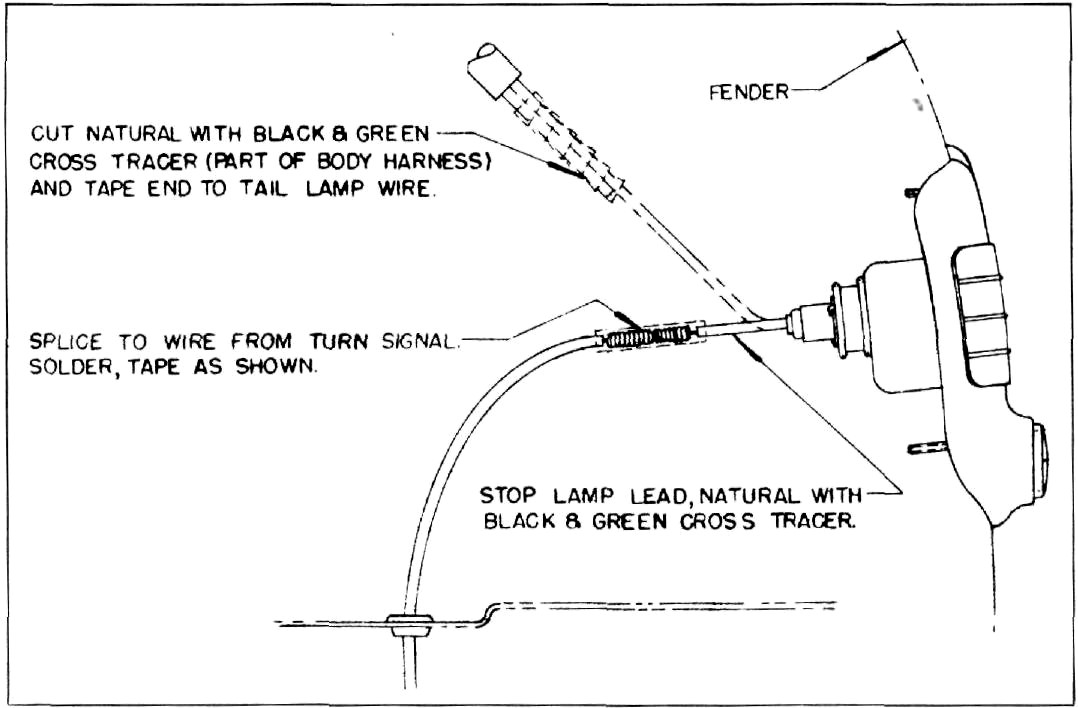

Figure 184 |
|||
|
|
|||
|
switch to connector left on wire
(stop lamp switch). Connect natural
with black and green cross
tracer wire from turn switch |
to other
wire (right-hand stop lamp) with connector furnished in package as shown in
figure
185. |
||
|
|
|||
 |
|||
|
|
|||
|

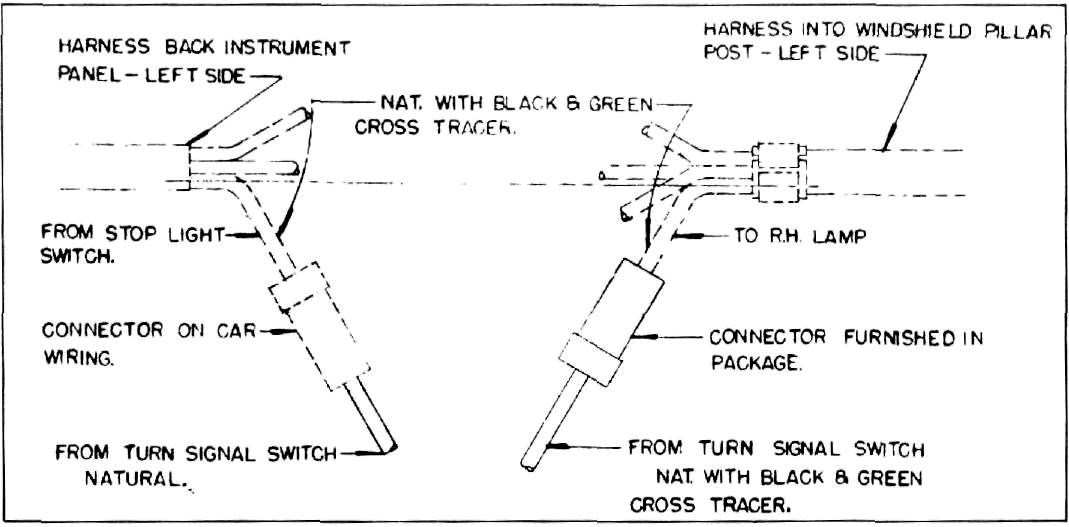

Figure 185 |
|||
|
|
|||
|
76 |
|||
|
|
|||
