1951 Chevy Accessories Installation Manual |
|||
 |
|||
|
|
|||
|

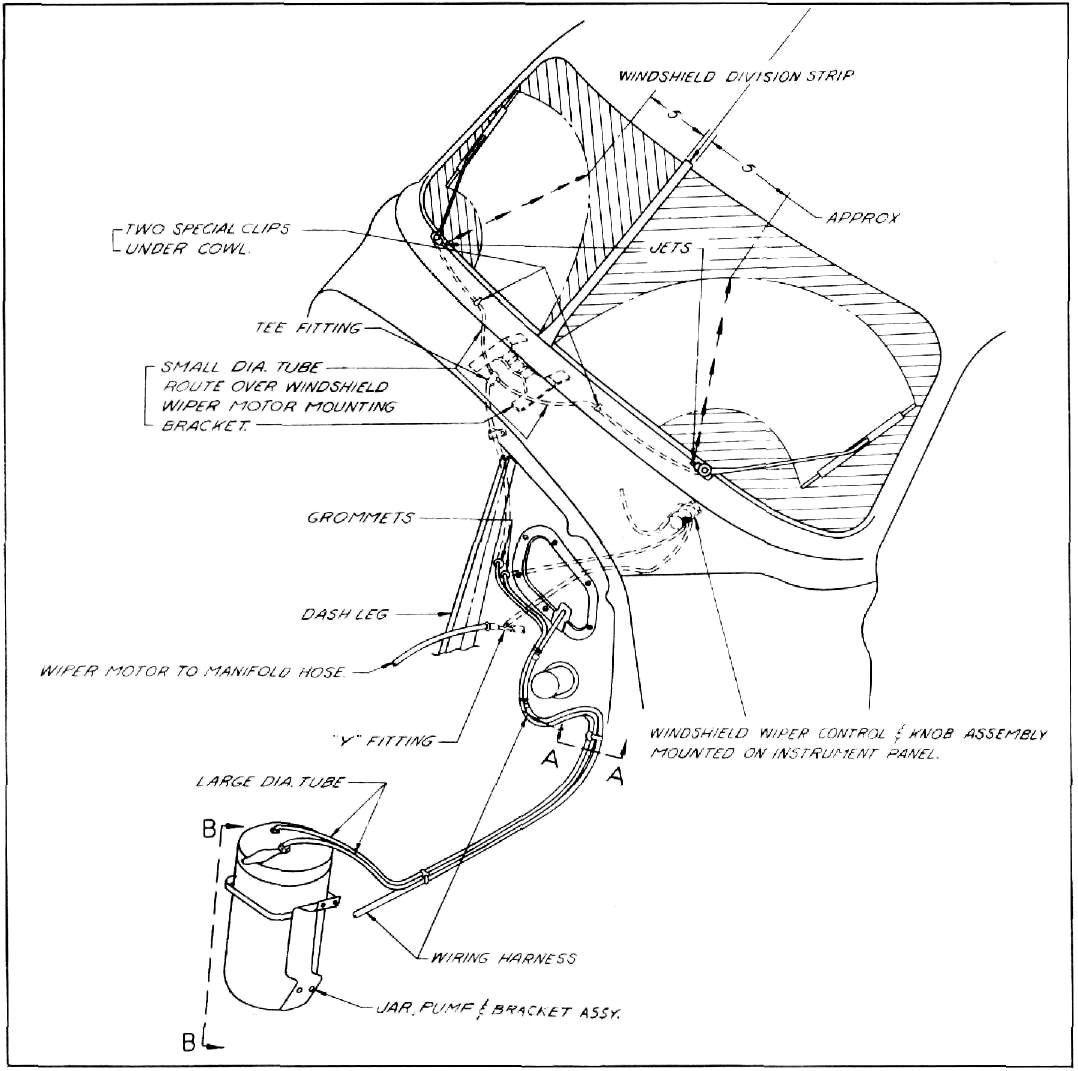

Figure 223 |
|||
|
|
|||
|
10. Cut the manifold to windshield wiper motor
tube 1 inch from dash mat in
the drivers compartment and
insert "Y" fitting. Take the
remaining large diameter tube and run from the "Y" fitting to the upper fitting on
the windshield wiper control
mounted on the instrument
panel.

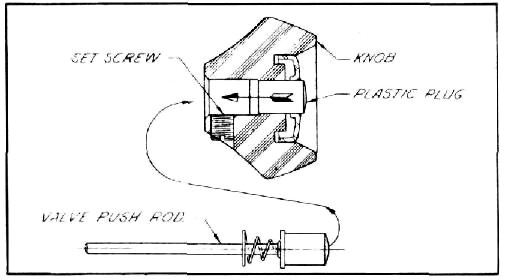

11. Remove windshield wiper control knob from
instrument panel by loosening
set screw and remove dummy plug
as shown in direction of
arrow, replace with valve push rod and reassemble, (see figure
224). |
 |
||
|
Figure 224 |
|||
|
|
|||
|
91 |
|||
|
|
|||
